Verizon's Fixed 5G: Are You Ready for the Wireless Gig Rush?

Dan Jones
11/15/2017
50%
50%

BEDMINSTER, N.J. -- Verizon Labs -- If Verizon wants you to know one thing about its forthcoming fixed 5G service -- arriving in 2018 -- it is that the wireless offering will deliver a consistent average gigabit on the downlink, not some theoretical peak speed that the user will never actually achieve in the real world.

The 1Gbit/s speed was stressed several times as we were taken on a tour of the Verizon Wireless Labs, which used to be the headquarters of Bell Atlantic, and still appeared to feature much of the authentic 1970s beige and avocado green decor. The reason is simple enough: Verizon is viewing fixed 5G as an over-the-air version of its FiOS fiber-to-the-home service, with -- hopefully -- much reduced deployment and installation costs for the operator.

"When we say 1 gig, we're talking averages, we're not talking peaks," said Mike Haberman, the vice president of network support at Verizon Wireless, on Tuesday.

What does this mean for the average household? Haberman suggested, for instance, that -- like FiOS -- Fixed 5G could support ten -- count 'em -- 4K streaming TVs on the system. As a rule of thumb, fixed 5G could use about ten times the data of a Verizon 4G connection.

The typical set-up will have a 28GHz 5G small cell radio within a quarter mile of the homes the service is expected to serve. These could be apartment buildings or suburban cul-de-sacs.

Verizon execs wouldn't yet say how many dwellings they expected to be able to serve with each high band radio. Line-of-sight connections are best, but Verizon insisted that non-line of sight can also work.

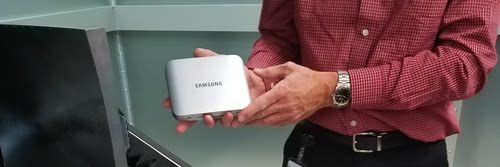

The 28GHz antenna would sit in a window and connect to a router inside the dwelling to distribute the signal via WiFi. Verizon showed off a 28GHz antenna from Samsung Electronics Co. Ltd. (Korea: SEC) that it has been using in its 11-market fixed 5G pre-commercial user tests.

Nokia Corp. (NYSE: NOK)'s Bell Labs unit has also been working to create a similar window-mounted antenna unit for Verizon, which connects the 5G antenna via an optical connection, because 28GHz signals do not penetrate walls or windows well. Verizon has also been experimenting with ribbon cable connections between the antenna and router section of the CPE. (See Nokia Bell Labs & Verizon Stretch Fixed 5G to the Home and Could 5G Have Found Its Glass Ceiling? for more on this issue.)

"It does actually penetrate walls sometimes," Haberman said, "better than Low-E glass."

In fact, in dense deployments, Verizon is expecting the multiplicty of guided 28GHz beams from multi-antenna arrays to enable 5G signals to find a path through beamforming and "ray tracing." Although once tree cover gets too heavy, or solid obstacles, such as, say, a new housing development arrive, all bets are off.

Which leads to the question of whether the 28GHz antennas should be self-installed or professionally installed? "We're looking at that right now," Haberman said.

Clearly, it would be better for Verizon if the systems could be entirely installed by the customer, as this would cut down on the truck rolls for the carrier.

At the moment it appears that Verizon is likely to deploy in cities and more dense suburban environments. Haberman indicated that Verizon can't yet say which markets will be first, but they should start popping up in 2018.

— Dan Jones, Mobile Editor, Light Reading

(10)  |
Comment  |
Print  |
Newest First  |  Oldest First  |  Threaded View        ADD A COMMENT
KBode
50%
50%
KBode,
User Rank: Light Sabre
11/27/2017 | 6:57:08 PM
Re: No rural
I think with less regulatory oversight than ever on the horizon, there may be less pressure to defend gutting aging DSL lines without providing an adequate replacement. I'm not sure the hype of 5G as a fixed-line replacement anytime this decade was ever based on realistic data -- mostly just lobbying and policy hype to justify gutting the consumer protections governing those still very much in use DSL and POTS lines.
Phil_Britt
50%
50%
Phil_Britt,
User Rank: Light Sabre
11/24/2017 | 11:44:03 AM
Re: No rural
Remember when it was thought that 256K of memory was enough for a PC?
DanJones
50%
50%
DanJones,
User Rank: Blogger
11/22/2017 | 10:56:42 PM
Re: No rural
They might have even thought that it work before the trials. I'm interested to see what results they announce before the end of the year.
KBode
50%
50%
KBode,
User Rank: Light Sabre
11/22/2017 | 8:09:42 PM
Re: No rural
"If i haven't been clear enough in the last couple of 5G articles: If you're in a rural area w/ lots of greenery, high-band 5G is just not happening for you! Sorry!"

And yet Verizon is telling everybody that they don't need to upgrade their taxpayer-subsidized DSL lines because wireless will be all anybody could EVER need....
DanJones
50%
50%
DanJones,
User Rank: Blogger
11/15/2017 | 5:20:22 PM
Re: No rural
See my just published story for more on MIMO challenges. Certainly possible that even 10 could be optimistic! It's wireless. There are so many variables.
DanJones
50%
50%
DanJones,
User Rank: Blogger
11/15/2017 | 5:20:19 PM
Re: No rural
See my just published story for more on MIMO challenges. Certainly possible that even 10 could be optimistic! It's wireless. There are so many variables.
zorank
50%
50%
zorank,
User Rank: Light Beer
11/15/2017 | 5:07:04 PM
Re: No rural
Remember this is very high spectrum, so even 10 may be too optimistic. They are also having problems with new Massive MIMO systems--very poor integration with the rest of the base station and OSS subsystems, and inability to track the performance of individual beams, for example. They are actually inquiring with their standard service assurance vendors if anybody has equipment that can be used to measure Massive MIMO performance.

They may also be having problems with new Massive MIMO systems--very poor integration with the rest of the base station and OSS subsystems, and inability to track the performance of individual beams, for example. They are actually inquiring with their standard service assurance vendors if anybody has equipment that can be used to measure Massive MIMO performance.
DanJones
50%
50%
DanJones,
User Rank: Blogger
11/15/2017 | 2:42:25 PM
Re: No rural
On paper, 20 subs should be doable, but this is the new frontier of wireless, I'm guessing half that -- going on chatter I've heard -- might be more realistic.
zorank
50%
50%
zorank,
User Rank: Light Beer
11/15/2017 | 2:38:07 PM
Re: No rural
There are comments through the grapevine that the trials have been really--let's say it diplomatically--challenging for Verizon, and that the goal specified in their plans of 20 subscribers "lit" by cell has typically not been met (2 per cell instead).
DanJones
100%
0%
DanJones,
User Rank: Blogger
11/15/2017 | 11:17:40 AM
No rural
If i haven't been clear enough in the last couple of 5G articles: If you're in a rural area w/ lots of greenery, high-band 5G is just not happening for you! Sorry!
