Study: LTE Can Knock Out Cable TV

Jeff Baumgartner
LR Cable News Analysis
Jeff Baumgartner
1/12/2011
50%
50%

The circumstances have to be just right, but a new technical report commissioned by U.K. regulatory Ofcom finds that Long Term Evolution (LTE) services operating in the 800MHz frequency band can interfere with -- and possibly punch out -- cable services.

The 83-page report (PDF) details the results of field trials conducted in April 2010 undertaken at Virgin Media Inc. (Nasdaq: VMED)'s RF/optical test facility in Birmingham over a seven-week period, and involving nine set-tops and 12 cable modems. The tests checked the technical and regulatory conditions for fixed and mobile communications networks operating in the 790MHz-862MHz band.

The results showed that interference was present in seven of the STBs tested and in all of the modems (the test didn't name the suppliers). The big caveat: Problems occurred when an LTE handset was operating at the maximum permissible transmit power at a separation distance of one meter. So, it tended to occur when one was practically sitting on top of the cable device.

On top of that, picture failure occurred when the LTE signal and cable-TV signal were operating on the same frequency, meaning there's some cause for concern, but not of the Chicken Little variety as mobile service providers around the globe begin to ramp up deployments of LTE. (See CES 2011: Verizon Takes 10 With LTE, CES 2011: AT&T Accelerates LTE Push, Who's Bagged the Biggest LTE Deals? and Where in the World Is LTE?)

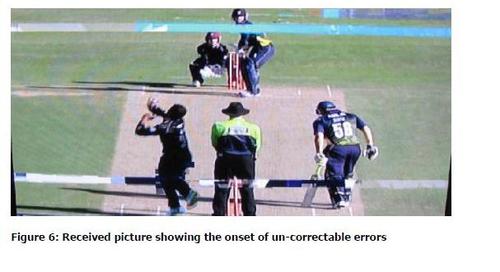

Pixely Wickets

Some of the interference issues were tied to product designs, including those that had high numbers of rectangular holes in the cable device metal sheeting that allow unwanted frequencies to seep in and couple with sensitive circuitry.

Although major interference occurred only in limited scenarios, the report, conducted by U.K.-based Cobham Technical Services, also offered some remedies on how cable gear could be improved to be more resistant to LTE signals. Among the suggestions: Operators could insert a 5MHz-wide band between the cable TV and LTE center frequencies, employ additional filtering to the RF circuitry, or simply not use the 832MHz-862MHz band for cable services.

The latter could require some significant work by the cable operator, and the report does acknowledge that the remedies cited do not examine their commercial feasibility.

Concerns about the potential for interference between cable and wireless broadband services aren't all that new. The U.S. cable industry has previously expressed them over previous studies showing that wireless broadband services that tap unlicensed "white spaces" (vacant airwaves between over-the-air TV channels) can interfere with digital cable services and wireless microphones.

The Federal Communications Commission (FCC) approved the use of white spaces last year, setting aside two channels for wireless mics. However, the FCC removed a suggested requirement that white-spaces devices support automated sensing tech that can detect the signals of TV stations and microphones. (See FCC Opens Up TV White Spaces and Cable Worried About 'White Space' Tech.)

We've asked the National Cable & Telecommunications Association (NCTA) for its reaction to the Ofcom test results and if it has any similar concerns over LTE that it had previously with the use of white spaces.

— Jeff Baumgartner, Site Editor, Light Reading Cable

(3)  |
Comment  |
Print  |
Newest First  |  Oldest First  |  Threaded View        ADD A COMMENT
Jeff Baumgartner
50%
50%
Jeff Baumgartner,
User Rank: Light Beer
12/5/2012 | 5:15:31 PM
re: Study: LTE Can Knock Out Cable TV


Via email, NCTA spokesman Brian Dietz offered this in response to questions regarding whether the organization had any concerns about LTE interference:


"We are aware of the issues that the Ofcom report raises and understand that European cable operators are examining this closely. We will also continue to monitor this situation."


As a reminder, the NCTA did quite a bit of research related to interference caused by white spaces technology.  JB




comtech3
50%
50%
comtech3,
User Rank: Light Beer
12/5/2012 | 5:15:26 PM
re: Study: LTE Can Knock Out Cable TV


My take on this is that the cable systems where these test were made do not off-set their carriers.Most US cable system,especially those close to broadcast transmitters, either use HRC ( harmonic related carriers),or IRC ( incremental related carriers ) to mitigate against such interference.Moreover, the problem would affect those MSO who deploy HFC architecture and not those who employ FFTH/FTTP.However, the problem for those MSOs who deploy HFC architecture is interference in the upstream spectrum and not in the downstream, save for ingress and co-channel  on analog for those systems that still support cable-ready TVs without the use of a set-top box.Bottom line is the MSOs in the US has done a good job in ensuring that their plants are free from ingress/egress; no planes have gone down from leaky cable system, knock on wood!




pstox
50%
50%
pstox,
User Rank: Light Beer
12/5/2012 | 5:12:28 PM
re: Study: LTE Can Knock Out Cable TV


There was another recent study by a US company on interference between cable TV and LTE
